Product Introduction

The HX-CSX601A is a four-system full-band external measurement antenna encompassing BDS, GPS, GLONASS, and GALILEO, meeting the current demands for high precision and multi-system compatibility in measurement equipment. It can be widely used in geodetic mapping, marine surveying, waterway surveying, dredging surveying, earthquake monitoring, bridge deformation monitoring, landslide monitoring, and container handling at docks, among other applications.

Technical features

1. The antenna employs a multi-feed design to ensure the phase center coincides with the geometric center, minimizing the antenna's impact on measurement errors.

2. The antenna elements have high gain and a wide beam pattern, ensuring effective reception of signals at low elevation angles, allowing for normal satellite reception even in heavily obstructed environments.

3. It features an anti-multipath choke, effectively reducing the impact of multipath propagation on measurement accuracy.

4. A waterproof and UV-resistant enclosure ensures the antenna can operate effectively in the field for extended periods.

Technical parameters

Structural dimensions (dimensional tolerance ±0.2mm)

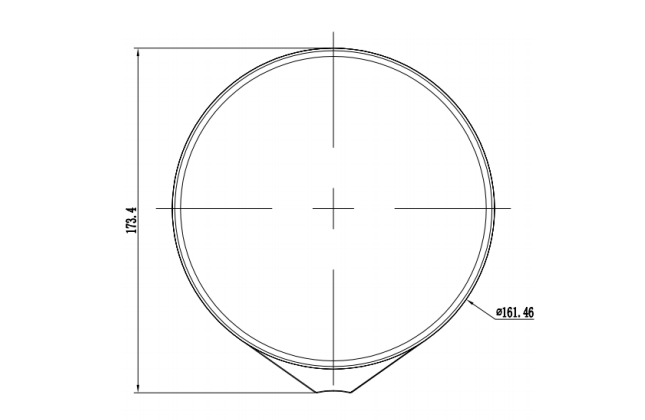

                         Top view

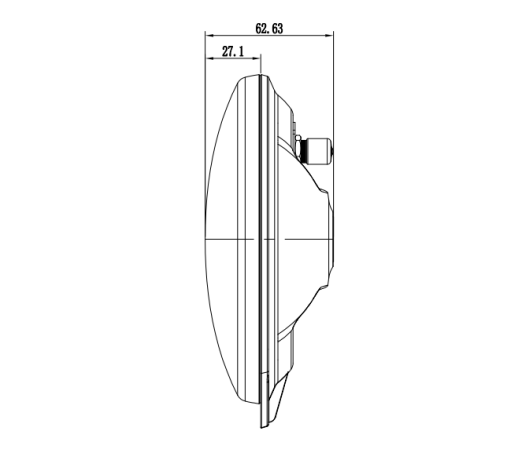

               Side view
