High performance rubidium atomic clock

Product Introduction

   The LX-A45 chip atomic clock is a miniature atomic clock based on the coherent population trapping principle and MEMS technology. It outputs an accurate and stable 10MHz standard frequency signal and 1PPS pulse signal. The installation size of the LX-A45 chip atomic clock is compatible with the SA.45s chip clock, and it can work in time and frequency boards and modules. It has a UART frequency calibration interface and an external electrical adjustment interface.

Features

1.Compatible with SA.45s, miniaturized

2.Power consumption as low as 130mW

3.UART serial communication

4.External second synchronization and 1PPS output

5.10MHz, 16.384MHz, 20MHz, 24.576MHz optional

Application

1.Battery powered time and frequency boards and modules

2.Military and Civilian Communication Systems

3.Power, telecommunications

4.Navigation and positioning

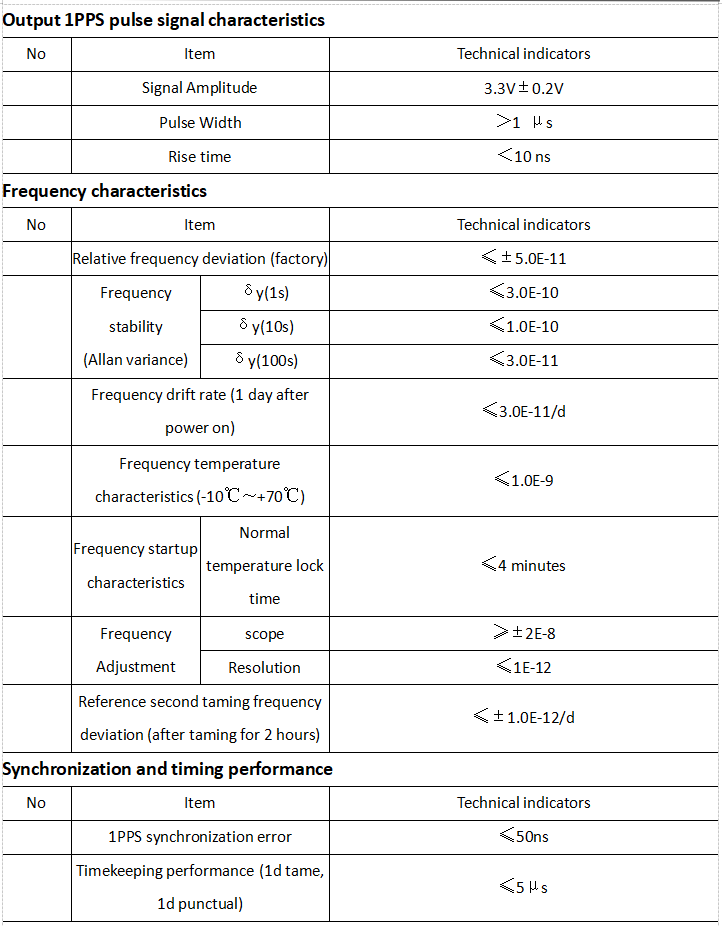

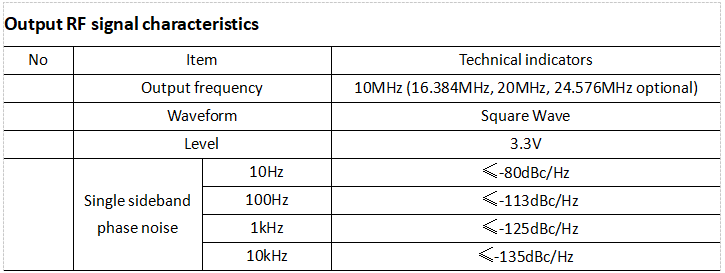

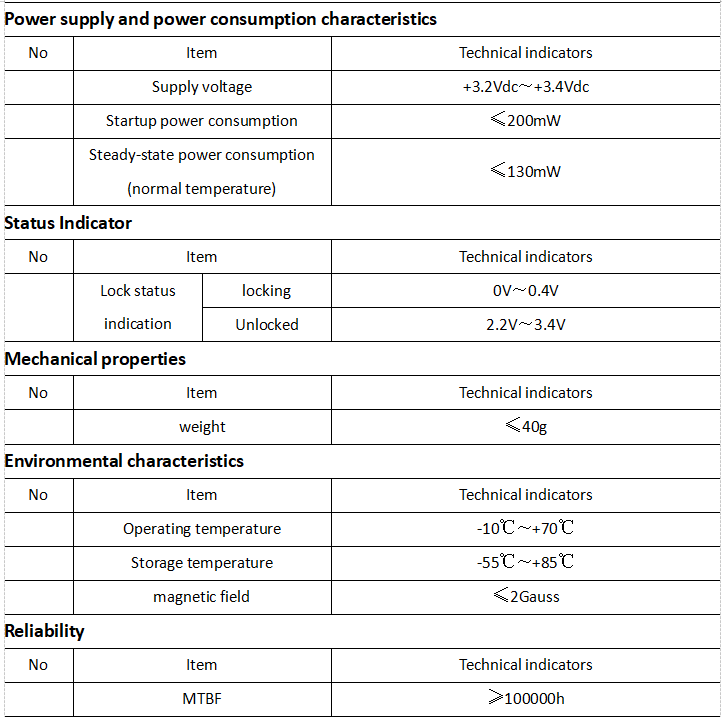

Technical Indicators

Dimensions and interfaces

The overall dimensions are (41±0.5) mm×(35±0.5) mm×(12±0.5) mm.

See the figure below for specific dimensions.

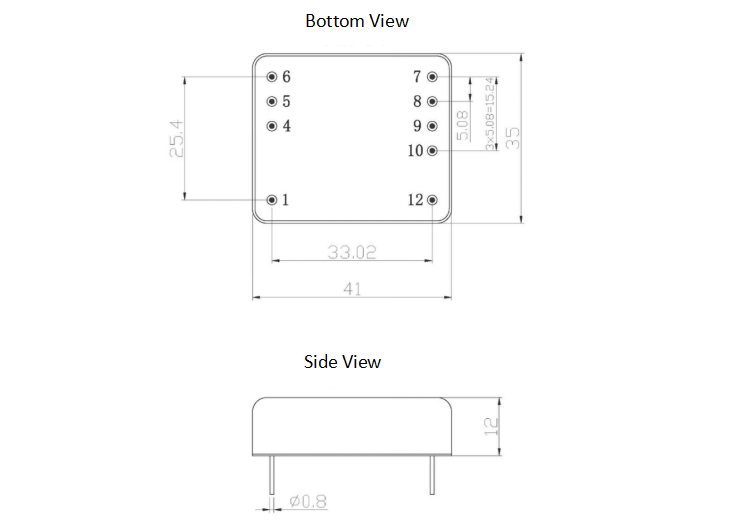

Figure 1 LX-A45 chip atomic clock dimensions (unit: mm)

There are 9 insulators for power supply, status, and control interfaces. The specific pin definitions are shown in Table 1.

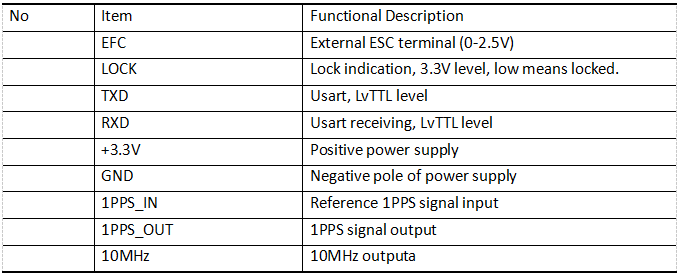

Table 1 Power supply, status, and control interface definition table
